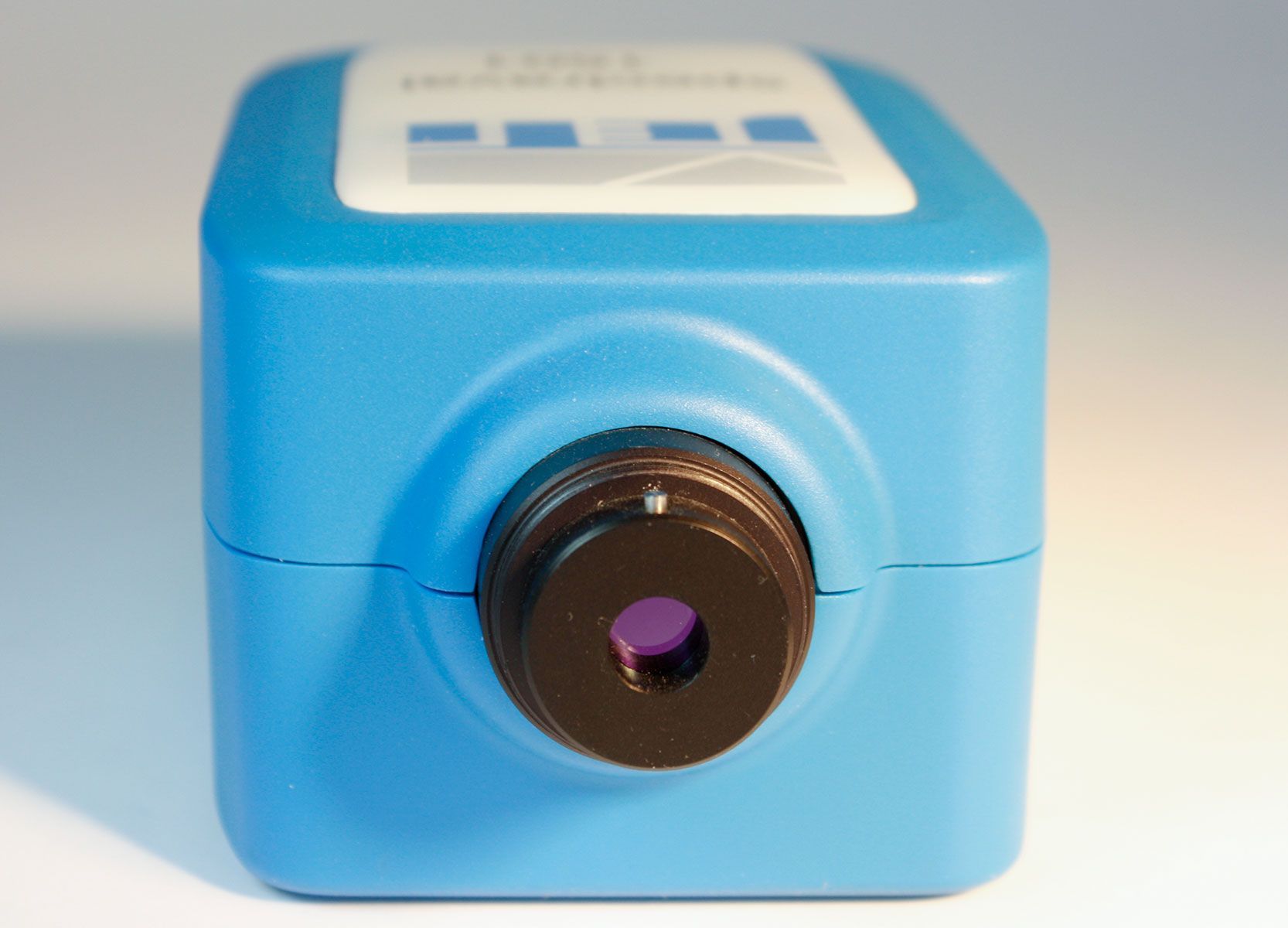

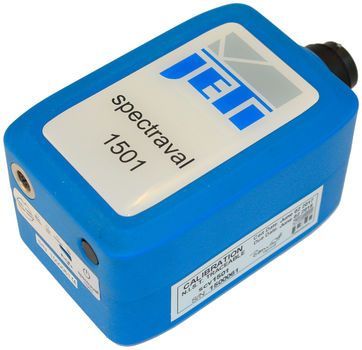

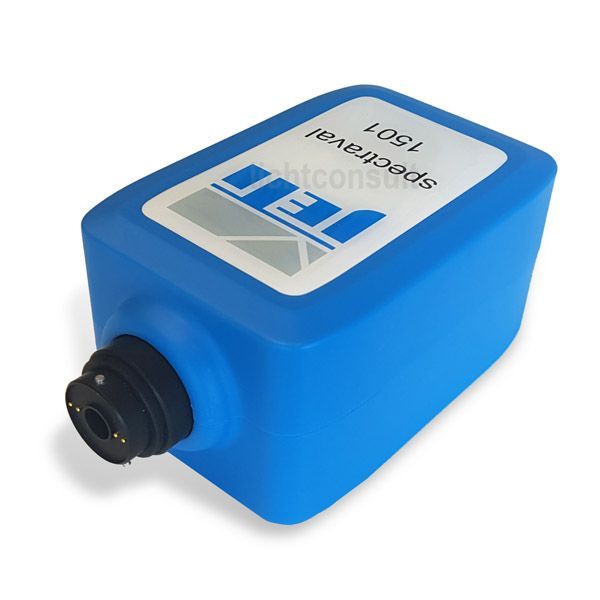

Spectraval 1501 is een nauwkeurige en economische VIS-spectroradiometer van referentiekwaliteit voor diverse toepassingen, waaronder monitor- en projectorkalibratie en het meten van verschillende soorten beeldschermen. Hij meet de spectrale radiantie in het zichtbare bereik en levert een verscheidenheid aan integrale gegevens.

Speciale versies van het apparaat zijn spectraval 1501-HiRes (met een verhoogde optische resolutie), spectraval 1501-NIR (met een golflengtebereik tot 1000 nm) en spectraval 1501-LAN (met LAN-interface in plaats van Bluetooth).

Optical parameters

• Spectral range 380 … 780 nm (380 … 1000 nm NIR version)
• Optical bandwidth 4.5 nm (2nm HiRes version)
• Wavelength resolution 1 nm
• Digital electronic resolution 16 bit ADC
• Viewing angle 1.8°
• Measuring distance/ diameter 20 cm – Ø 8 mm; 100 cm – Ø 33 mm

Measuring quantities

• Spectral Radiance
• xy and u' v' coordinates
• Dominant wavelength, Color purity
• Correlated Color Temperature (CCT)
• CRI
• CQS
• TM-30
• Circadian metrics
• PAR

Meetbereik en meetonzekerheid (according to CIE TN 009:2019)

• Luminance measuring range 0.2 ... 180 000 cd/m² (Illuminant A)
• 0.2 … 140 000 cd/m2 (typical warm white LED)
• Luminance uncertainty ± 4.4 % (Illuminant A @ 100 cd/m2, k=2)
• Luminance repeatability ± 1 % (Illuminant A)
• Chromaticity uncertainty ± 0.002 x, y (Illuminant A, k=2)
• Color repeatability ± 0.0005 x, y (Illuminant A)
• CCT repeatability ± 20 K (Illuminant A)
• Max. wavelength error ± 0.2 nm (HgAr line source)
• Polarization error f8 < 2 %

General applications

• Spectral measurements in production and production environment
• Radiant intensity calculation using Irradiance measurement
• Irradiance calculation using Radiance measurement

Display and projection measurement

• Adjustment of digital projectors in cinemas

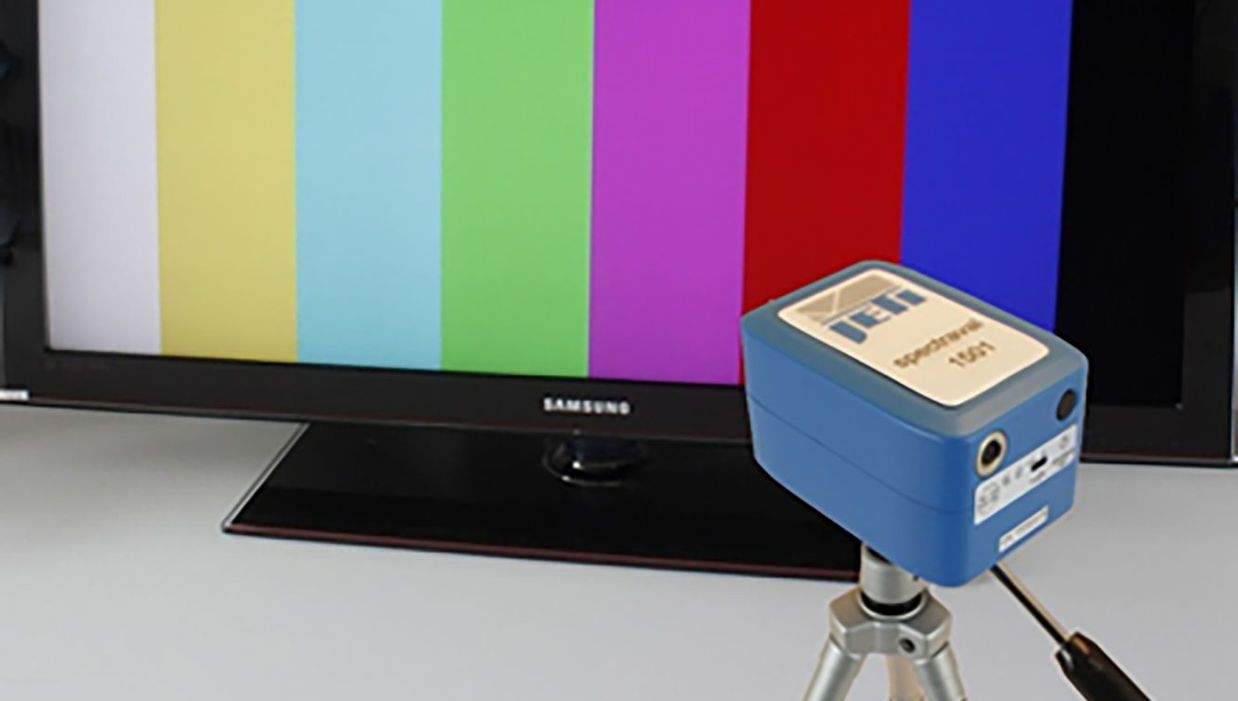

• Color adjustment of broadcast and consumer monitors
• Measurement of RGB laser projection
• Measurement of small symbols and display segments
• Calibration of ambilight TV

LED measurement

• Optical characterization of LEDs
• Ranking of LEDs and other light sources
• Measurement of OLED modules

Lamps

• Burn in tests of lamps

Light effects

• Measurement in architecture and architecture models
• Measurement of street lighting
• CRI adjustment of surgerial lamps
• Circadian metrics

Miscellaneous

• Application of different color matching functions
• Correction measurement for Tristimulus instruments
• Long term measurements of daylight and in green houses
• General transmission/reflexion measurements
• Remote sensing
• Measurements in strong magnetic fields
• Special new “Visual appearance” calculations

• PC software JETI LiVal for Windows 8.1/ 10,
• Operating instructions
• Software development kit on BT stick
• USB cable

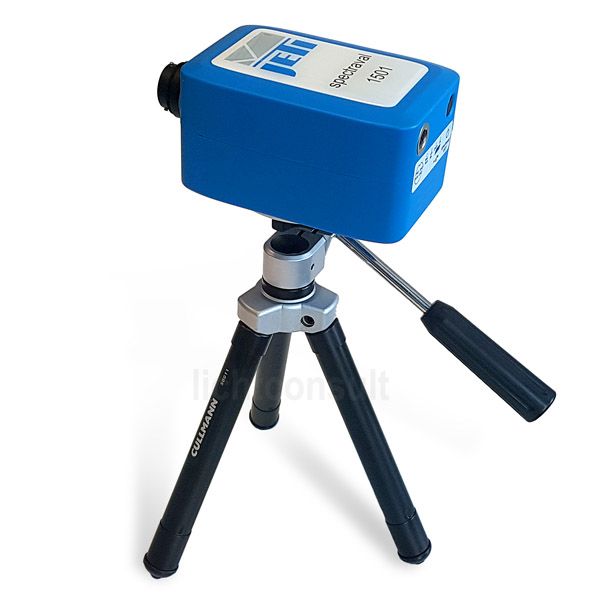

• Tripod
• Carrying bag
• Battery charger
• Calibration certificate
